Compact Performance with 5G Protection
The Fracarro LP45F700MINI is the smaller brother of the popular LP45F700. It offers solid 9dBi gain and excellent 5G/4G filtering in a much more compact package – perfect when space is limited or a less conspicuous installation is preferred.
Pre-assembled and ready to mount horizontally or vertically, it features the same quality F-connector near the mast clamp that Fracarro is known for.
- 9 dBi Gain
- Strong 5G/4G LTE filtering above 694 MHz
- 30 dB Front-to-Back ratio
- Compact size – only 44 cm long
- Pre-assembled for fast installation
- Horizontal or Vertical polarisation
- Black finish
Ideal for metropolitan and regional areas where a full-size log periodic is not required.
Product Information Sheet:
Download Datasheet (PDF)
| Technical Specifications | |
| Bandwidth | 470–694 MHz |
| Gain | 9 dBi |
| Beamwidth | ±30° |
| Impedance | 75 Ohm |
| Connector | F-Type |
| Max Mast Diameter | 60 mm |
| Dimensions | 44 x 36 cm |
| Weight | 0.50 kg |
| Wind Load (120 km/h) | 2.7 kg |
| Polarisation | Horizontal or Vertical |
| Band | UHF |
| Antenna Type | Log Periodic (Mini) |
| Elements | 20 (10+10) |
| 4G/5G Filtered | Yes |
| Return Loss | –15 dB |
| Channel | 28–51 |

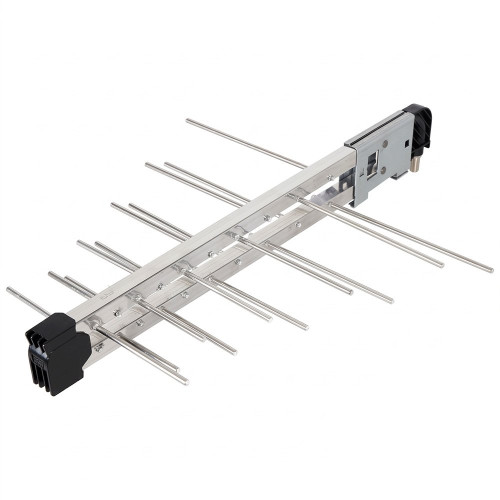

Fracarro LP45F700MINI Log Periodic UHF Antenna – 9dBi with 5G/4G Filtering
- Brand: Fracarro
- Product Code: LP45F700MINI
- Availability: In Stock
-
$33.00
- Ex Tax: $33.00
