Clean Digital TV Reception – Even with Strong 4G/5G Interference

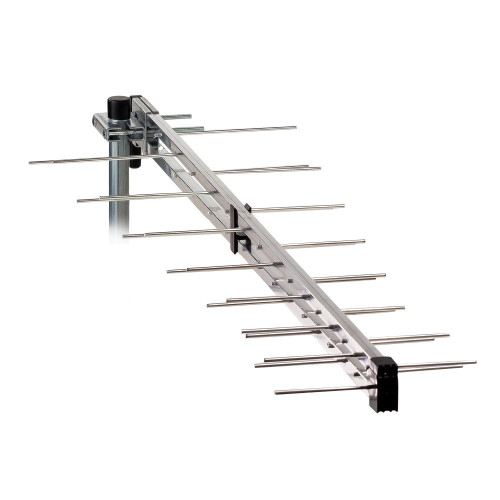

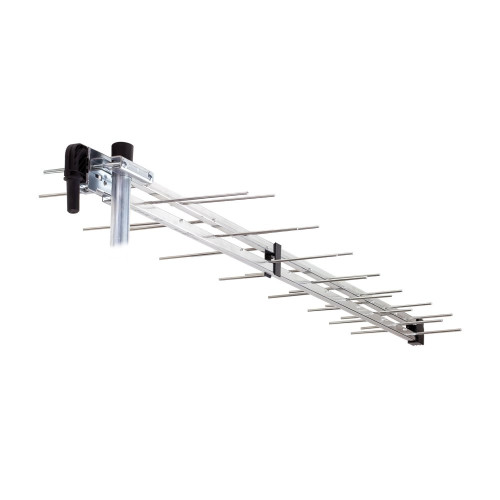

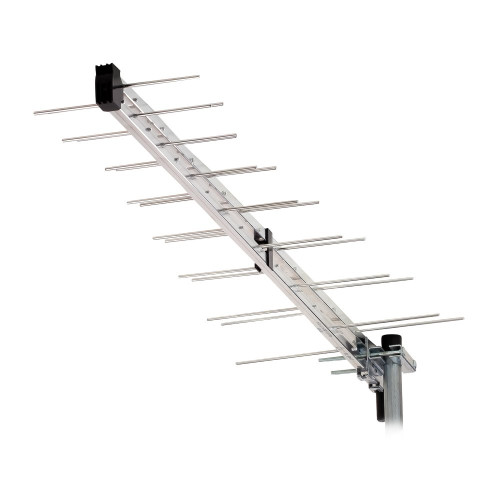

The Fracarro LP45F700 is a professional log-periodic UHF antenna specifically redesigned for the Australian market. It delivers excellent gain and a very high front-to-back ratio while naturally rejecting 4G and 5G mobile signals above 694 MHz.
This makes it an outstanding choice for areas where mobile phone towers are causing pixelation or dropouts on free-to-air TV.
Key Benefits
- 12.5 dBi Gain – Strong signal pull for reliable reception
- Excellent 5G/4G Filtering – Designed to reject interference above 694 MHz
- 36 dB Front-to-Back Ratio – Superior rejection of unwanted signals from behind
- Pre-assembled – Fast, easy installation
- Horizontal or Vertical Polarisation – No extra adaptors needed

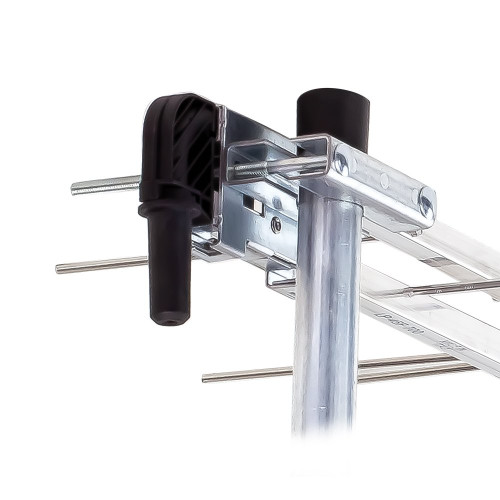

- F-Type Connector – Located near the mast clamp for convenient connection
- Black finish – Discreet and professional appearance
- Exclusive Australian design – Registered specifically for our market
Whether you’re installing on a suburban home, a rural property, or a commercial site, the LP45F700 gives clean, stable digital TV reception with minimal fuss.
Trusted by professional installers across Australia and backed by Fracarro’s reputation for quality Italian engineering.

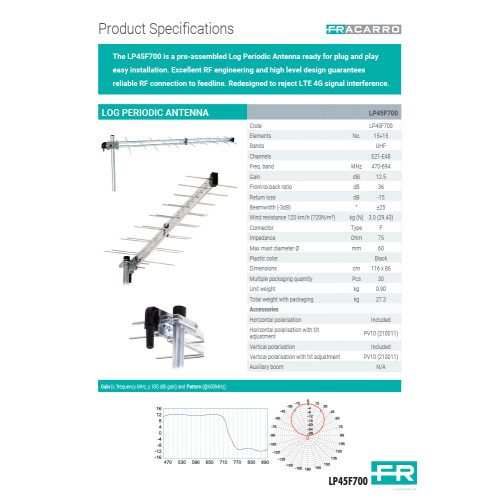

Product Information Sheet:
Download Datasheet (PDF)
| Technical Specifications | |
| Bandwidth | 470–694 MHz |
| Beamwidth | ±25° |
| Impedance | 75 Ohm |
| Connector | F-Type |
| Max Mast Diameter | 60 mm |
| Dimensions | 115 cm × 32 cm |
| Weight | 0.90 kg |
| Wind Load (120 km/h) | 3.0 kg |
| Polarisation | Horizontal or Vertical |
| Antenna Type | Log Periodic |
| Elements | 30 (15+15) |
| Front-to-Back Ratio | 36 dB |
| 4G/5G Filtered | Yes |
| Return Loss | -15 db |
| Channel | E21-E48 |
Fracarro LP45F700 Log Periodic UHF Antenna – 12.5dBi with 5G/4G Filtering
- Brand: Fracarro
- Product Code: LP45F700
- Availability: In Stock
-
$80.12
- Ex Tax: $80.12
