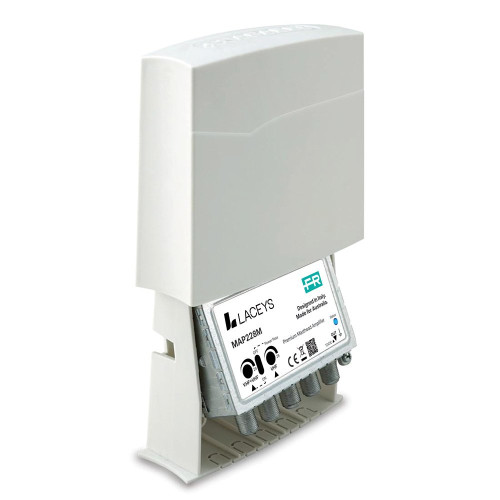

Solid 2-Input Masthead Amplifier with 5G Protection
The Fracarro MAP228M is a practical and reliable masthead amplifier designed for everyday digital TV installations. It features two inputs (VHF+UHF and UHF) with separate amplification and independent gain adjustment on each input.
Built-in high-pass and low-pass filtering provides effective protection against 4G and 5G mobile interference above 694 MHz, helping deliver cleaner Freeview reception.
- 28 dB gain
- 2 inputs: VHF+UHF and UHF
- Independent gain adjustment per input
- Built-in 5G/4G filtering
- Up to 116 dBµV output level on UHF
- Die-cast shielded housing
- Power indicator LED
- Low noise figure
- Requires 12V DC power supply
A good all-round choice for residential and light commercial installs where a simple, effective masthead amplifier is needed.
Product Information Sheet:
Download Datasheet (PDF)
| Technical Specifications | |
| Dimensions | 120 × 50 × 105 mm |
| Weight | 0.23kg |
| TechSpecs Amplifiers | |
| Amplifier Type | Masthead |
| Number of Inputs | 2 |
| Input Configuration | VHF+UHF / UHF |
| Max Gain | 28db |
| 4G/5G Filtered | Yes |
| Programmable / Smart | No |
| Power Supply | 12DC Coax |
Fracarro MAP228M 2-Input Masthead Amplifier – 28dB VHF+UHF / UHF with 5G Filtering
- Brand: Fracarro
- Product Code: MAP228M
- Availability: In Stock
-
$68.90
- Ex Tax: $68.90
